BECKHOFF倍福EL2809

價  格:詢價

產  地:上海更新時間:2024-09-29 16:42

品  牌:其他型  號:

狀  態:正常點擊量:2915

400-006-7520
聯系我時,請說明是在上海非利加實業有限公司上看到的,謝謝!

上海非利加實業有限公司

聯 系 人: 上海非利加實業有限公司

電   話: 400-006-7520

傳   真: 400-006-7520

配送方式: 上海自提或三方快遞

聯系我時請說在上海非利加實業有限公司上看到的,謝謝!




產品參數


產品介紹

    上海貫捷電氣科技主營全新德***畢孚原產BECKHOFF倍福全系列產品,特價銷售EL1889、EL2889、EL2809、EL1809、EK1100、EK1110、EL6751、EL6731、EL9410、EL1008、EL2008等型號,大量現貨,真實庫存,歡迎廣大客戶前來咨詢采購,聯系人:文小姐。聯系電話:021-80181638、18721663576。

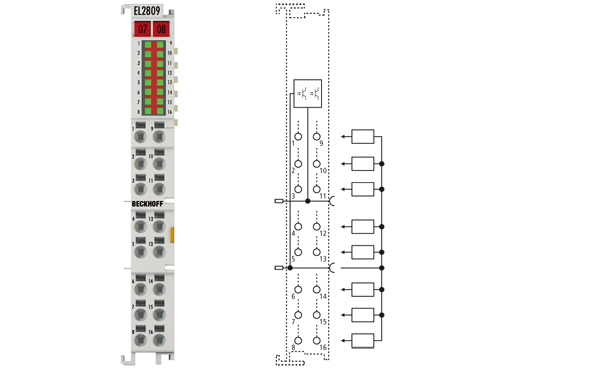

EL2809 | HD EtherCAT Terminal, 16-channel digital output 24 V DC, 0.5 A

The EL2809 digital output terminal connects the binary control signals from the automation device on to the actuators at the process level with electrical isolation. The EL2809 is protected against polarity reversal and processes load currents with outputs protected against overload and short-circuit. The EtherCAT Terminal contains 16 channels, whose signal states are displayed by LEDs. The terminal is particularly suitable for space-saving use in control cabinets. The connection technology is particularly suitable for single-ended inputs. All components have to use the same reference point as the EL2809. The power contacts are looped through.

The outputs are fed via the 24 V power contact in the EL2809. The conductors can be connected without tools in the case of solid wires using a direct plug-in technique.

The HD EtherCAT Terminals (High Density) with increased packing density feature 16 connection points in the housing of a 12 mm terminal block.

Technical data EL2809
Connection technology 1-wire
Number of outputs 16
Rated load voltage 24 V DC (-15 %/+20 %)
Load type ohmic, inductive, lamp load
Distributed clocks
Max. output current 0.5 A (short-circuit-proof) per channel
Short circuit current typ. < 2 A
Reverse voltage protection yes
Breaking energy < 150 mJ/channel
Switching times typ. TON: 60 µs, typ. TOFF: 300 µs
Current consumption E-bus typ. 140 mA
Electrical isolation 500 V (E-bus/field potential)
Current consumption power contacts typ. 35 mA + load
Bit width in the process image 16 outputs
Configuration no address or configuration setting
Conductor types solid wire, stranded wire and ferrule
Conductor connection solid wire conductors: direct plug-in technique; stranded wire conductors and ferrules: spring actuation by screwdriver
Rated cross-section solid wire: 0.08…1.5 mm²; stranded wire: 0.25…1.5 mm²; ferrule: 0.14…0.75 mm²
Weight approx. 70 g
Operating/storage temperature -25…+60 °C/-40…+85 °C
Relative humidity 95 %, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos. IP 20/variable
Approvals CE, UL, Ex
QQ截圖20180721225202

el2809 (3)
